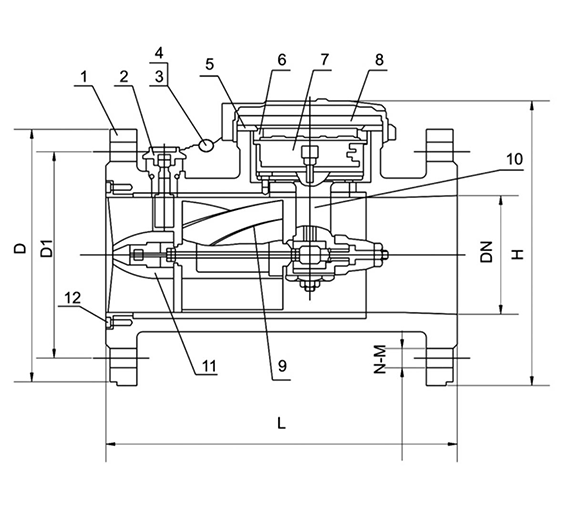

● Materials
1 | Body |
2 | Adjuster |
3 | Brass wire |
4 | Lead seal |
5 | Gasket |
6 | Bushing |
7 | Indicator |
8 | Glass |
9 | Wing wheel |
10 | Yoke |
11 | Rectifier |
12 | Bolts |
DN | L | H | D | D1 | N-M |
80 | 225 | 232 | 200 | 160 | 8-M16 |
150 | 250 | 242 | 220 | 180 | 8-M16 |
200 | 300 | 298 | 285 | 240 | 8-M20 |
250 | 350 | 350 | 340 | 295 | 8-M20 |
