● Standards:
● Materials

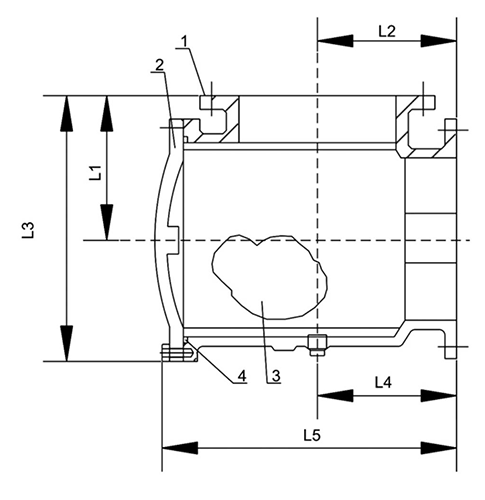

1 | Body | Cast iron / Ductile iron |
2 | Bonnet | Cast iron / Ductile iron |
3 | Screen | Stainless steel |
4 | O Ring | EPDM |
5 | Bolt | Carbon Steel |
DN | L1 | L2 | L3 | L4 | L5 |
50×50 | 114 | 114 | 178 | 151 | 253 |
65×60 | 127 | 127 | 199 | 167 | 270 |
80×50 | 140 | 114 | 207 | 154 | 252 |
80×65 | 140 | 140 | 226 | 179 | 284 |
80×80 | 140 | 140 | 226 | 179 | 284 |
100×80 | 165 | 165 | 280 | 223 | 334 |
100×100 | 165 | 165 | 280 | 210 | 328 |
125×100 | 191 | 191 | 332 | 254 | 394 |
125×125 | 191 | 191 | 349 | 254 | 394 |
150×100 | 203 | 165 | 310 | 223 | 334 |
150×125 | 203 | 203 | 367 | 272 | 423 |
150×150 | 203 | 203 | 367 | 272 | 423 |
