● Standards:
● Materials

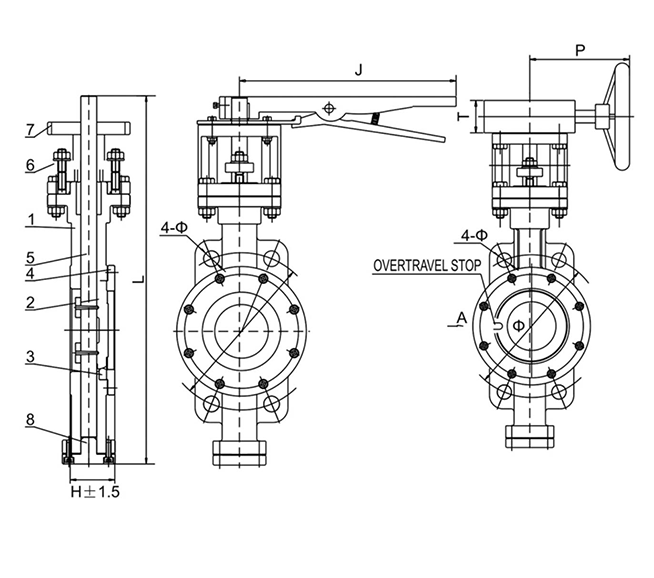

1 | Body | WCB / CF8M |
2 | Disc | WCB / CF8M |
3 | Seat | S.S. 316 |
4 | Cover | WCB / CF8M |
5 | Stem | S.S. 316 |
6 | Stuff cover | WCB / CF8M |
7 | Yoke | WCB / CF8M |
6 | End cover | WCB / CF8M |
DN | H | L | DIN PN 16 | CL150 | P | T | J | ||
Φ | 4-Φ | Φ | 4-Φ | ||||||
50 | 43 | 300 | 125 | 18 | 120.5 | 19 | 178 | 62 | 265 |
65 | 46 | 318 | 145 | 18 | 139.5 | 19 | 178 | 62 | 265 |
80 | 49 | 350 | 160 | 18 | 152.5 | 19 | 178 | 62 | 265 |
100 | 56 | 452 | 180 | 18 | 190.5 | 19 | 178 | 62 | 265 |
125 | 64 | 479 | 210 | 18 | 216 | 22 | 235 | 78 | 265 |
150 | 70 | 512 | 240 | 23 | 241.5 | 22 | 235 | 78 | 365 |
200 | 71 | 636 | 295 | 23 | 298.5 | 22 | 235 | 78 | 365 |
250 | 76 | 731 | 355 | 27 | 362 | 25 | 235 | 78 | 365 |
300 | 83 | 797 | 410 | 27 | 432 | 25 | 226 | 80 | 365 |
