● Standards:
● Materials

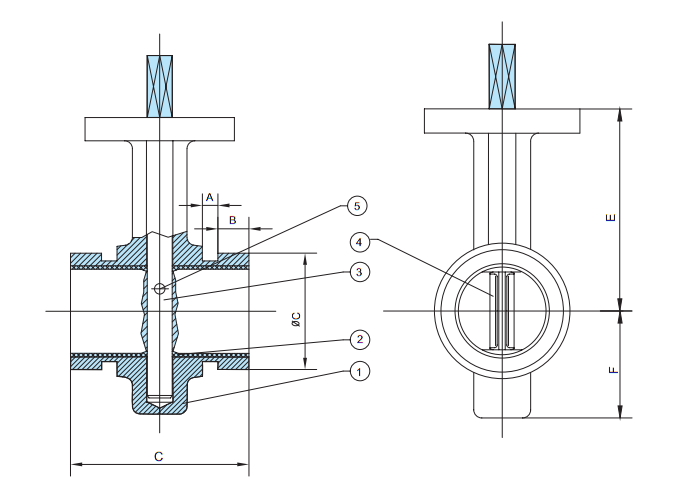

NO. | PART | MATERIAL |
1 | Body | Cast Iron, Ductile Iron |
2 | Seat | NBR, EPDM |
3 | Shaft | Stainless Steel 416, 316, 304 |
4 | Disc | Ductile Iron+Ni, CF8, CF8M |
5 | Pin | Stainless Steel |
SIZE | A | B | C | L | E | F | |
in | DN | ||||||
2 | 50 | 8 | 16 | 60 | 92 | 100 | 53 |
2-1/2 | 65 | 8 | 16 | 76 | 102 | 108 | 61 |
3 | 80 | 8 | 16 | 89 | 102 | 114 | 68 |
4 | 100 | 10 | 16 | 114 | 116 | 136 | 85 |
5 | 125 | 10 | 16 | 141 | 125 | 162 | 99 |
6 | 150 | 10 | 16 | 165 | 125 | 174 | 111 |
8 | 200 | 11 | 19 | 219 | 138 | 230 | 145 |
