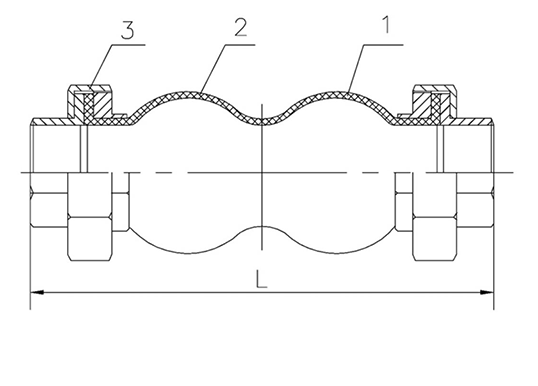

● Materials
1 | Parts | Materials |
2 | Main Body | Polarized rubber |
3 | Lining | Nylon cord fabric |
4 | Union | Hard steel wire |
Size | L | Axial displacement | Lateral |
||
(mm) | (in) | Stretch(mm) |
Compression | ||
15 | 1/2" | 200 | 5-6 | 22 | 22 |
20 | 3/4" | 200 | 5-6 | 22 | 22 |
25 | 1" | 200 | 5-6 | 22 | 22 |
32 | 1 1/4" | 200 | 5-6 | 22 | 22 |
40 | 1 1/2" | 200 | 5-6 | 22 | 22 |
50 | 2" | 200 | 5-6 | 22 | 22 |
65 | 2 1/2" | 245 | 5-6 | 22 | 22 |
80 | 3" | 245 | 5-6 | 22 | 22 |
