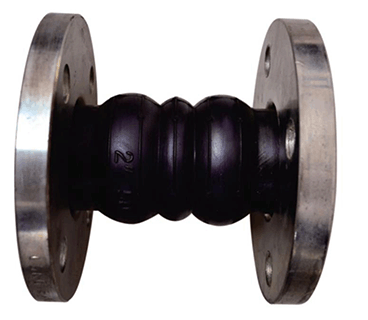

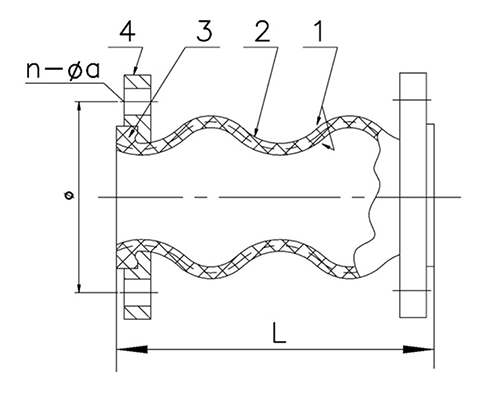

● Materials
1 | Parts | Materials |
2 | Main Body | Polarized rubber |
3 | Lining | Nylon cord fabric |
4 | Frame | Hard steel wire |
5 | Flange | Forged steel |
Size | L | PN10 | PN16 | Axial displacement | Lateral |
anglle of deflection(a1+a2) |
||||
(mm) | (in) | Φ |
n-Φ | Φ |
n-Φ | Stretch(mm) |
Compression | |||
32 | 1 1/4" | 175 | 100 | 4-18 | 100 | 4-18 | 25 | 50 | 45 | 35° |
40 | 1 1/2" | 175 | 110 | 4-18 | 110 | 4-18 | 25 | 50 | 45 | 35° |
50 | 2" | 175 | 125 | 4-18 | 125 | 4-18 | 25 | 50 | 45 | 35° |
65 | 2 1/2" | 175 | 145 | 4-18 | 145 | 4-18 | 25 | 50 | 45 | 35° |
80 | 3" | 175 | 160 | 4-18 | 160 | 8-18 | 35 | 50 | 45 | 35° |
100 | 4" | 225 | 180 | 8-18 | 180 | 8-18 | 35 | 50 | 38 | 35° |
125 | 5" | 225 | 210 | 8-18 | 210 | 8-18 | 35 | 50 | 38 | 35° |
150 | 6" | 225 | 240 | 8-23 | 240 | 8-23 | 35 | 50 | 38 | 35° |
200 | 8" | 325 | 295 | 8-23 | 295 | 12-23 | 35 | 60 | 30 | 35° |
250 | 10" | 325 | 350 | 12-23 | 350 | 12-27 | 35 | 60 | 30 | 35° |
300 | 12" | 325 | 400 | 12-23 | 410 | 12-27 | 35 | 60 | 30 | 20° |
350 | 14" | 330 | 460 | 16-23 | 470 | 16-27 | 35 | 45 | 28 | 20° |
400 | 16" | 330 | 515 | 16-27 | 525 | 16-30 | 35 | 45 | 28 | 20° |
450 | 18" | 330 | 565 | 16-27 | 585 | 20-30 | 35 | 45 | 28 | 20° |
500 | 20" | 340 | 620 | 20-27 | 650 | 20-33 | 35 | 45 | 28 | 20° |
600 | 24" | 400 | 725 | 20-30 | 770 | 20-36 | 35 | 45 | 28 | 20° |
