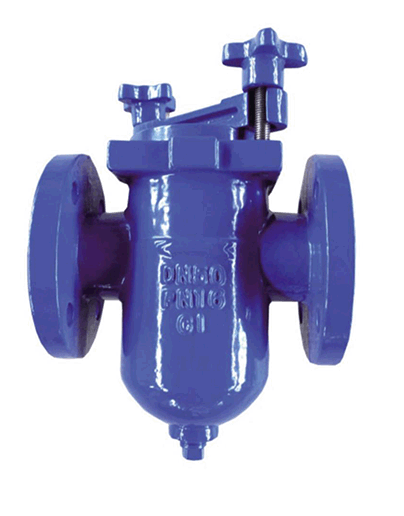

Our Product — Strainer - basket strainer
● Standards:
- 1. Flange dimensions: ASME B16.1/DIN 2533/BS 4504.
2. Face to face dimensions: ASME B16.10/DIN 3201 Fl/BS 2080.
3. Test and inspection: API 598/EN12266.
4. Size up to 20".
● Materials
| 1 | Body | Cast iron / Ductile iron |
| 2 | Cover | Cast iron / Ductile iron |
| 3 | Screen | Stainless steel |
| 4 | Gasket | Graphite |
| 5 | Plug | Cast iron / Ductile iron |

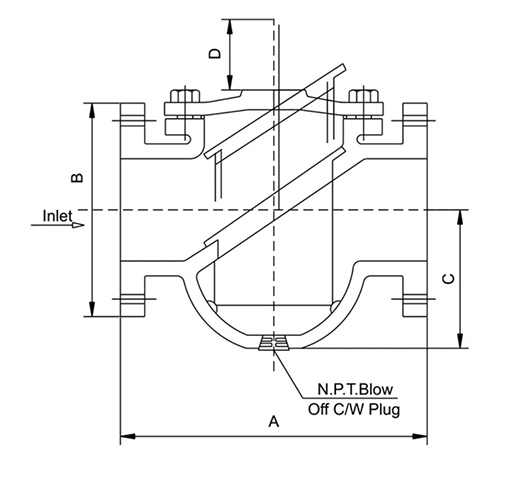

● Dimensions
| Size | A | B | C | D | N.P.T. |
| 2" | 8 1/2 | 8 3/8 | 5 | 5 3/8 | 1/2 |
| 2 1/2" | 8 3/4 | 9 5/8 | 8 5/16 | 6 5/16 | 3/4 |
| 3" | 9 7/8 | 11 1/4 | 6 1/2 | 8 1/2 | 3/4 |
| 4" | 11 1/2 | 13 1/2 | 8 | 9 5/16 | 1 |
| 5" | 13 1/8 | 14 5/8 | 8 | 10 1/4 | 1 |
| 6" | 14 7/8 | 15 5/8 | 8 5/8 | 11 1/8 | 1 |
| 8" | 18 11/16 | 21 | 11 3/4 | 15 9/16 | 1 1/2 |
| 10" | 20 1/8 | 24 1/2 | 13 3/4 | 18 | 1 1/2 |
| 12" | 26 1/4 | 29 3/4 | 16 3/8 | 23 1/4 | 2 |
| 14" | 30 1/4 | 36 3/8 | 23 1/4 | 28 1/8 | 2 |
| 16" | 33 1/8 | 38 3/4 | 23 1/4 | 30 | 2 |
| 18" | 38 3/8 | 38 | 19 | 35 | 2 |
| 20" | 41 1/2 | 43 5/8 | 23 1/2 | 37 | 2 |
