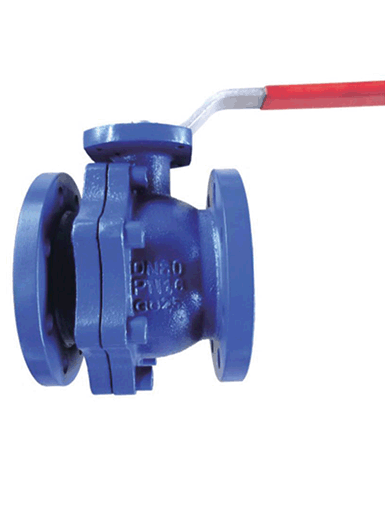

Our Product — Ball Valve - Ball valve
● Standards:
- 1. Design and manufacture: DIN 3357.
2. Flange dimensions: EN 1092-2/DIN 2533.
3. Face to face dimensions: DIN 3202 F4/F5.
4. Test and inspection: API 598/EN12266.
5. Size up to 12".
● Materials
| NO. | PART | MATERIAL |
| 1 | Body | CAST IRON(GG25)/GGG40 |
| 2 | BONNET | CAST IRON(GG25)/GGG40 |
| 3 | BALL | SS304 |
| 4 | SEAT | PTFE |
| 5 | STEM | SS304 |
| 6 | GASKET | PTFE |
| 7 | STEM PACKING | PTFE |
| 8 | GLAND NUT | CARBON STEEL |
| DN | d | L | D | C | R | b | f | N | h | E | U | W | H |
| 15 | 15 | 115 | 95 | 65 | 45 | 14 | 2 | 4 | 14 | 42 | M5 | 130 | 86 |
| 20 | 20 | 120 | 105 | 75 | 58 | 16 | 2 | 4 | 14 | 42 | M5 | 160 | 95 |
| 25 | 25 | 125 | 115 | 85 | 68 | 16 | 2 | 4 | 14 | 42 | M5 | 160 | 100 |
| 32 | 32 | 130 | 140 | 100 | 78 | 18 | 2 | 4 | 19 | 50 | M6 | 160 | 105 |
| 40 | 40 | 140 | 150 | 110 | 88 | 18 | 3 | 4 | 19 | 50 | M6 | 250 | 121 |
| 50 | 50 | 150 | 165 | 125 | 102 | 20 | 3 | 4 | 19 | 70 | M8 | 250 | 136 |
| 65 | 65 | 170 | 185 | 145 | 122 | 20 | 3 | 4 | 19 | 102 | M10 | 350 | 161 |
| 80 | 80 | 180 | 200 | 160 | 138 | 22 | 3 | 8 | 19 | 102 | M10 | 350 | 180 |
| 100 | 100 | 190 | 220 | 180 | 158 | 24 | 3 | 8 | 19 | 102 | M10 | 400 | 222 |
| 125 | 125 | 325 | 250 | 210 | 188 | 26 | 3 | 8 | 19 | 125 | M12 | 600 | 260 |
| 150 | 150 | 350 | 285 | 240 | 212 | 26 | 3 | 8 | 23 | 140 | M16 | 600 | 280 |
| 200 | 200 | 400 | 340 | 295 | 268 | 30 | 3 | 12 | 23 | 165 | M20 | 700 | 340 |
| 250 | 250 | 450 | 405 | 355 | 320 | 32 | 3 | 12 | 27 | 165 | M20 | Gear | |
