● Standards:
● Materials
Part |
Material |
EN Spec. |
Body |
Ductile Iron |
EN-JS1050 |
Orifice Cover |
Ductile Iron |
EN-JS1050 |
Air Release Nipple |
Brass |
EN 12165 CW603N |
Screw Plug |
Brass |
EN 12165 CW603N |
Float Ball |
ABS(ISO2580) |
Commercial |
Ball Seal Orifice |
EPDM |
Commercial |

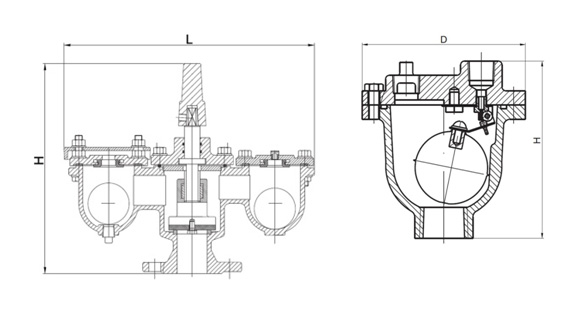

● Dimensions
DN | mm | 50 | 80 | 100 | 150 | 200 |
inch | 2 | 3 | 4 | 6 | 8 | |
L | 418 | 454 | 492 | 595 | 698 | |
H | 351 | 375 | 419 | 440 | 475 |
