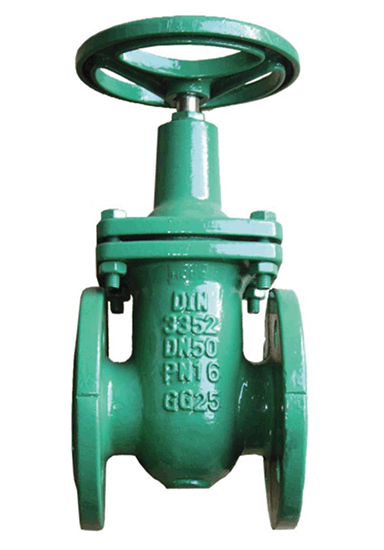

● Standards:
● Materials
DN | D | D1 | D2 | L | b | H | f | Z-d | D0 | |
F4 | F5 | |||||||||
Φ40 | Φ150 | Φ110 | Φ84 | 140 | 240 | 18 | 214 | 3 | 4-Φ19 | Φ180 |
Φ50 | Φ165 | Φ125 | Φ99 | 150 | 250 | 20 | 232 | 3 | 4-Φ19 | Φ200 |
Φ65 | Φ185 | Φ145 | Φ118 | 170 | 270 | 20 | 258 | 3 | 4-Φ19 | Φ200 |
Φ80 | Φ200 | Φ160 | Φ132 | 180 | 280 | 22 | 281 | 3 | 8-Φ19 | Φ220 |
Φ100 | Φ220 | Φ180 | Φ156 | 190 | 300 | 24 | 315 | 3 | 8-Φ19 | Φ250 |
Φ125 | Φ250 | Φ210 | Φ184 | 200 | 325 | 26 | 358 | 3 | 8-Φ19 | Φ280 |
Φ150 | Φ285 | Φ240 | Φ211 | 210 | 350 | 26 | 408 | 3 | 8-Φ23 | Φ280 |
Φ200 | Φ340 | Φ295 | Φ266 | 230 | 400 | 30 | 500 | 3 | 12-Φ23 | Φ320 |
Φ250 | Φ405 | Φ355 | Φ319 | 250 | 450 | 32 | 572 | 3 | 12-Φ28 | Φ350 |
Φ350 | Φ520 | Φ470 | Φ429 | 270 | 500 | 36 | 751 | 4 | 16-Φ23 | Φ450 |
Φ400 | Φ580 | Φ525 | Φ480 | 290 | 550 | 38 | 832 | 4 | 16-Φ31 | Φ450 |
DN | PART | MATERIAL | STANDARD |
1 | Body | Gray Cast Iron | GG25 |
2 | Body Seat Ring | Brass | |
3 | Wedge | Ductile Iron | GGG50 |
4 | Wedge Seat Ring | Brass | |
5 | Stem Nut | Brass | |
6 | Stem | Stainless Steel | 2Cr13 |
7 | Bonnet Bolt | Carbon Sheel | A3 |
8 | Nut | Carbon Sheel | A3 |
9 | Washer | Carbon Sheel | A3 |
10 | Gasket | Nbr | |
11 | Bonnet | Gray Cast Iron | GG25 |
12 | O-Rimg | Nbr | |
13 | Loacting Ring | Brass | |
14 | O-Rimg | Nbr | |
15 | Bpmmet Mut | Brass | |
16 | Minipad | Tfl | |
17 | Dust Ring | Nbr | |
18 | Wheel | Ductile Iron | GGG50 |
19 | Washer | Carbon Sheel | A3 |
20 | Bolt | Carbon Sheel | A3 |
